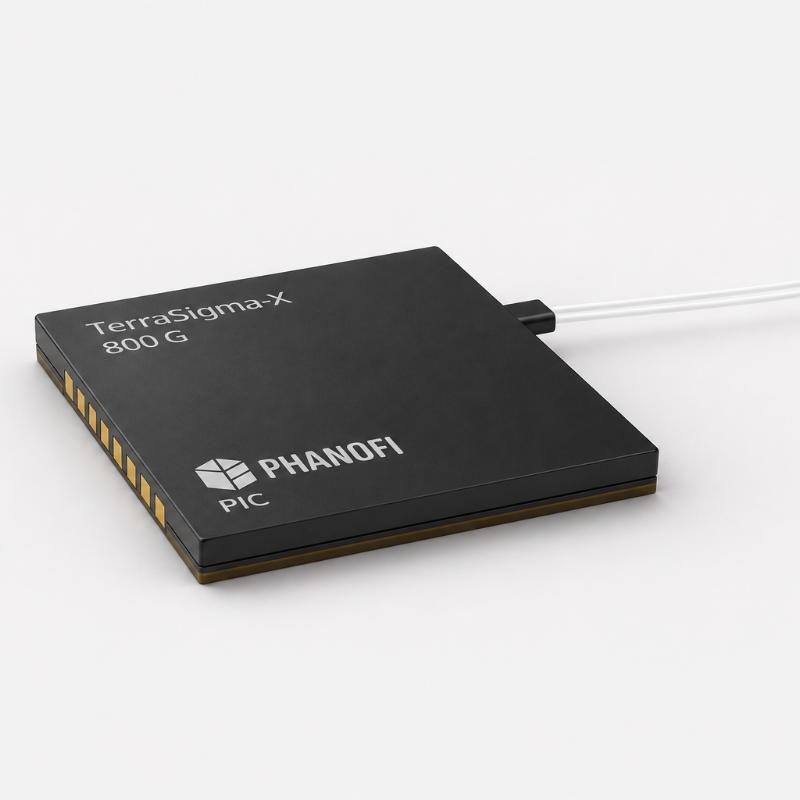

TerraSigma-X PIC engine
arrow_backTo the overviewThe heart of Phanofi's technology is the photonic integrated circuit (PIC) engine and its high-speed electronics co-packaged into a single device, ready to be built into a pluggable. The PIC engine comes in two version the Axiom and TerraSigma-X. Both engines carries Phanofi's CoDi architecture, which detects phase and polarization passively in the optical domain rather than in a coherent DSP, so the engine delivers four times the throughput per wavelength of an intensity-only design and 25 to 30% less power per link, while still being driven by a standard PAM4 DSP on the host board. Axiom runs at 400G in 8 W, TerraSigma-X at 800G/1.6T in 13/22 W. Both are laid out to current electrical and packaging standards, so they drop into existing module designs without changes to the host. Both engines are designed for OEMs and system builders who package their own modules.
This product is added by:
Phanofi
Phanofi is a Danish deep tech start-up building the next generation of high-speed optical transceivers for AI datacenters, as well as pulsed laser sources for quantum applications. Our technology combines high-speed photonic integrated circuits (PICs) with RF electronics, drawing on deep expertise in physics, electronics and optics. We also work with partners to design custom high-speed PICs or high-speed analog EICs when off-the-shelf components fall short.
