RF-Over Fibre

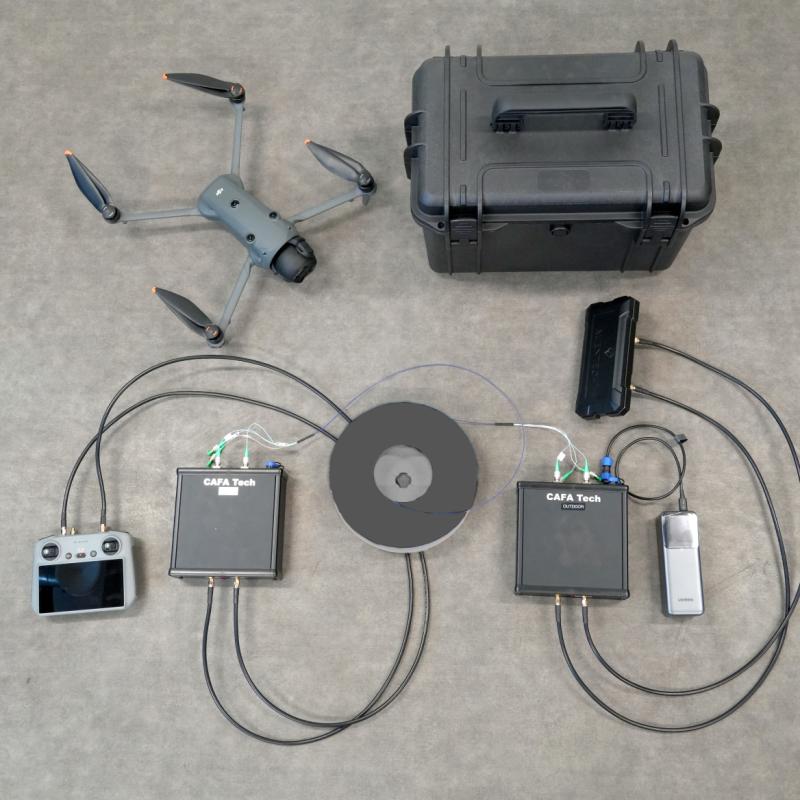

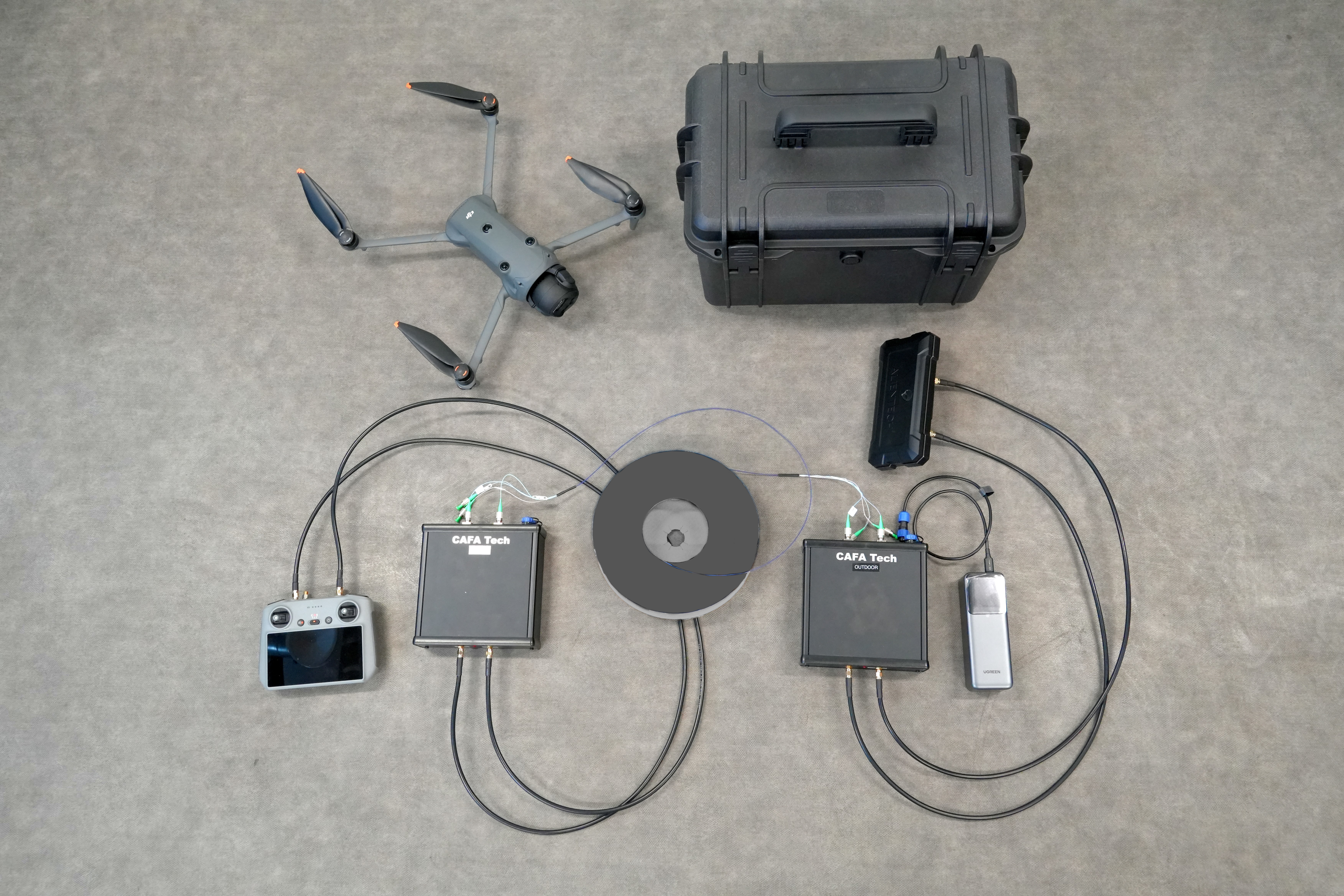

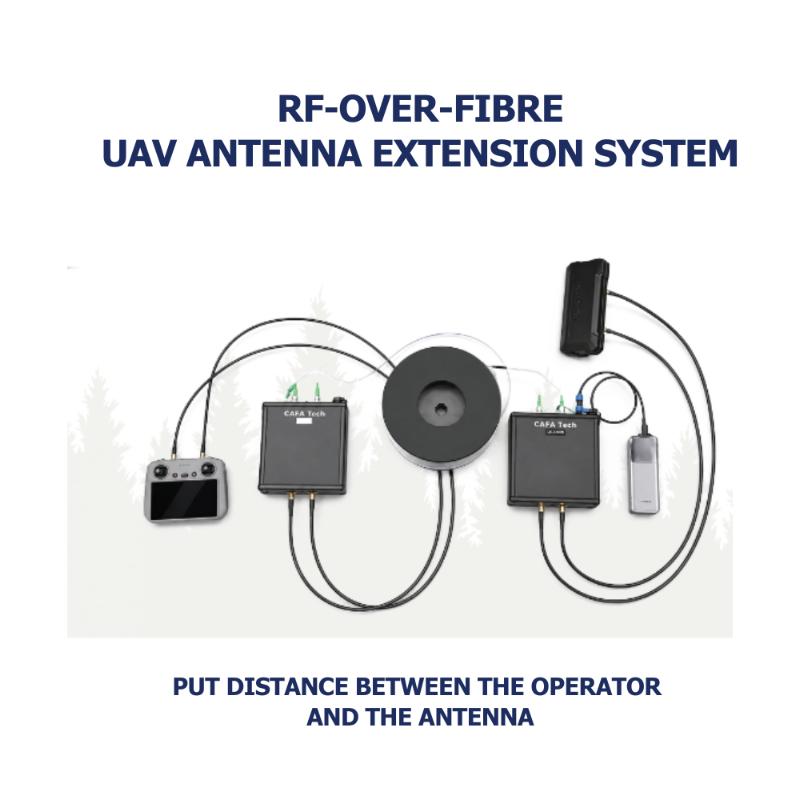

arrow_backTo the overviewRFOF is an tactical UAV Antenna extension system.

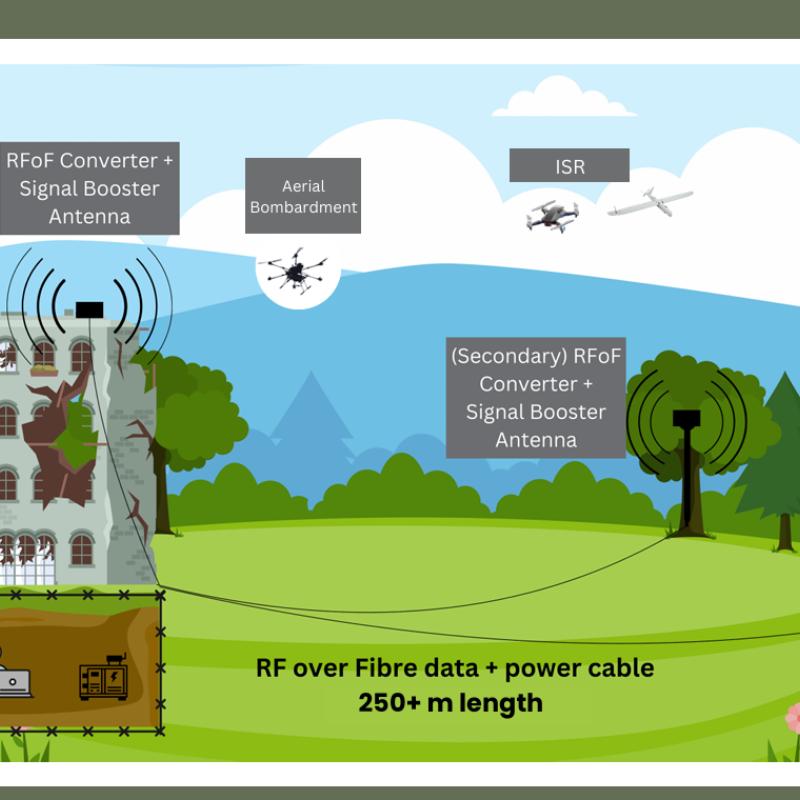

Operator near radiating elements is open to attacks and detection. With RFOF you can create distance between operator and the antenna (100m - 1km).
Operating frequency : 330MHz - 7.5GHz
Latency <1ms
Signal Type: Transparent (Analog + Digital RF, any modulation)
Converter weight : 1kg each
Power : 2-7W
Connectors : FC / APC (fibre) , SMA, QMA, N-type
Variable cable lengths possible (100m-1km)
This product can be seen at the exhibition.
This product can be seen at the Exhibition
This product is added by:
CAFA Tech OÜ
CAFA Tech (Estonia) keeps unmanned operations connected, powered and protected. Our X-band radar detects small attack drones — including swarms — at up to 3 km, forming the core of Counter-UAS architectures. Our RF-over-Fibre system moves UAV operators' communication antennas up to 1,000 m away from the crew, taking the operator out of the strike radius of a detected RF source. The same infrastructure delivers up to 500 W of power to radars, unmanned systems and other forward-deployed equipment — no generators, no exposed positions. Designed and manufactured in Estonia, deployed with UAV units
See profile
